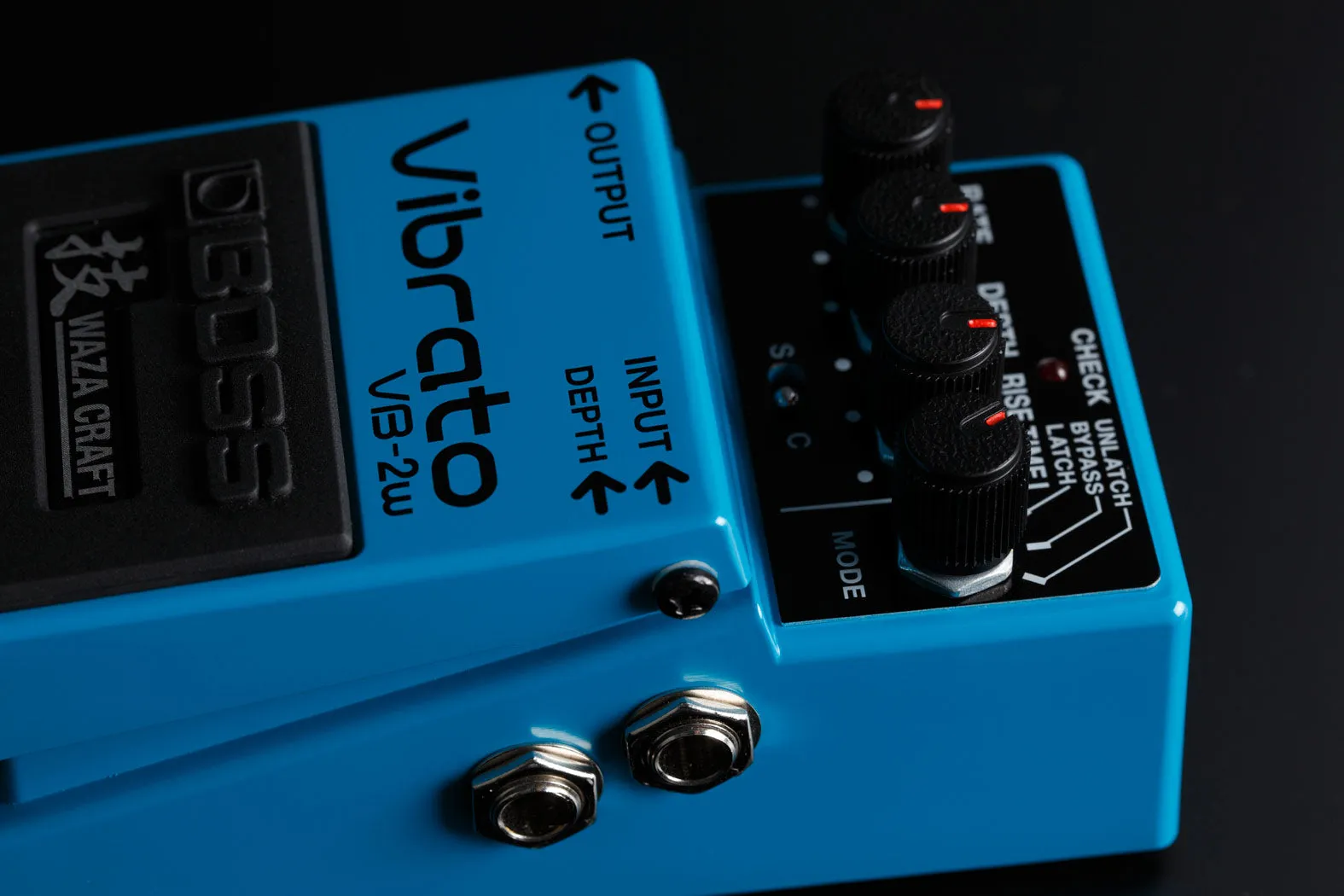

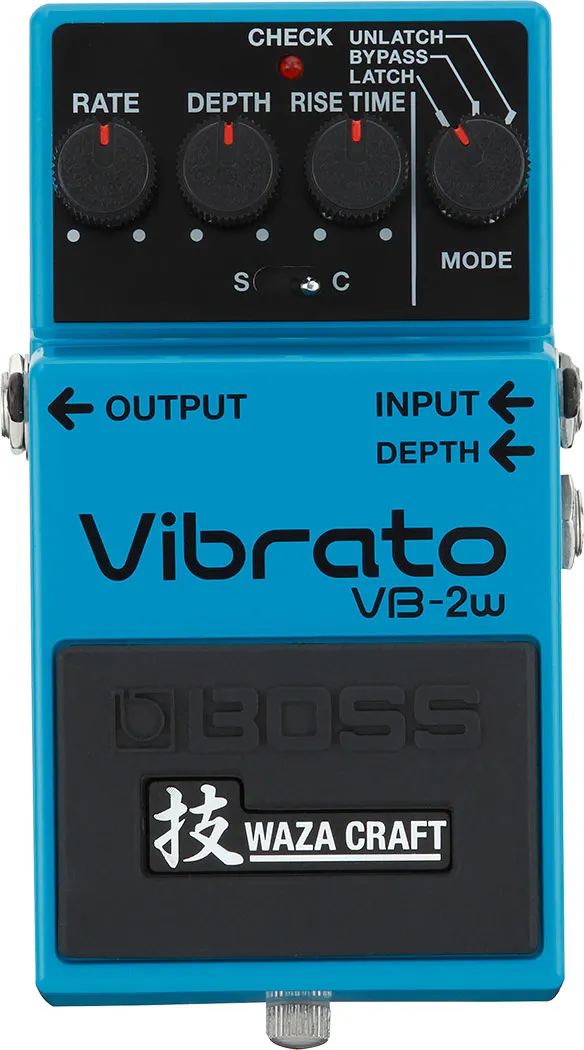

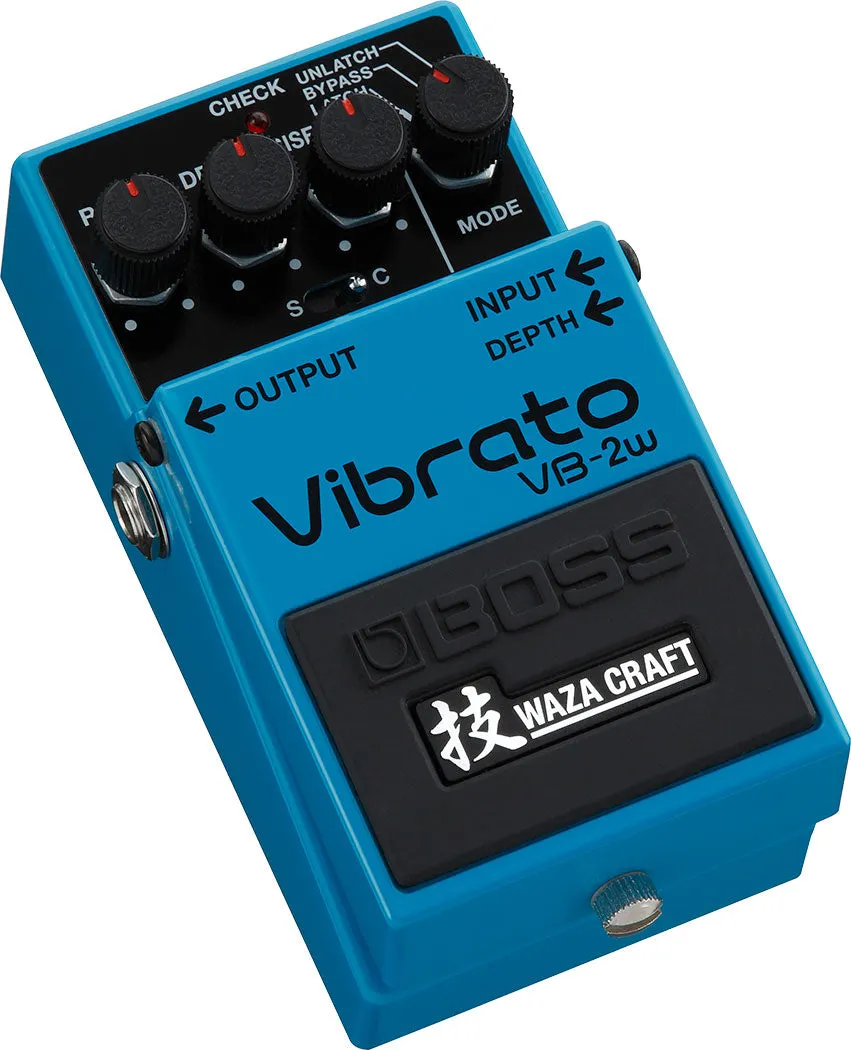

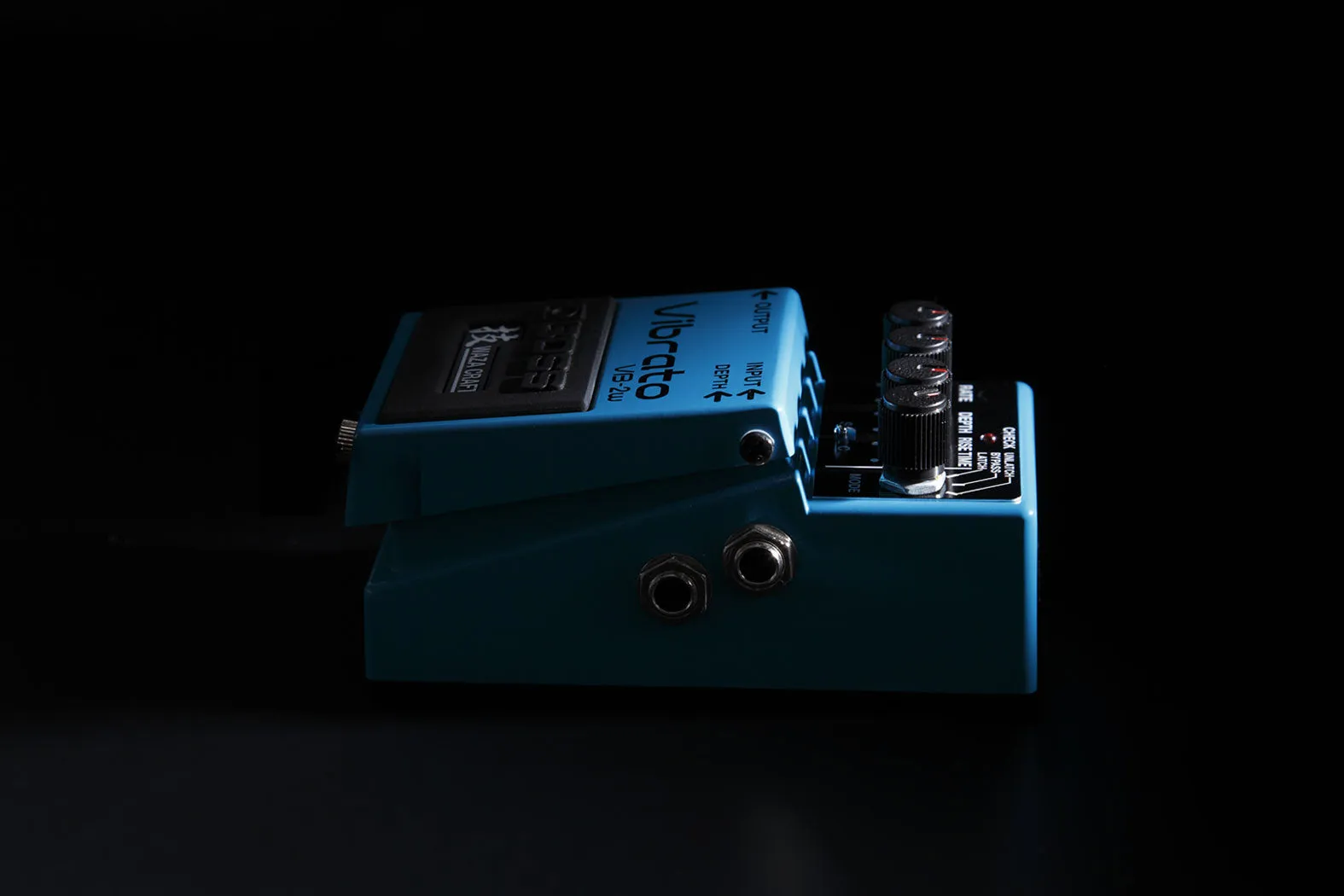

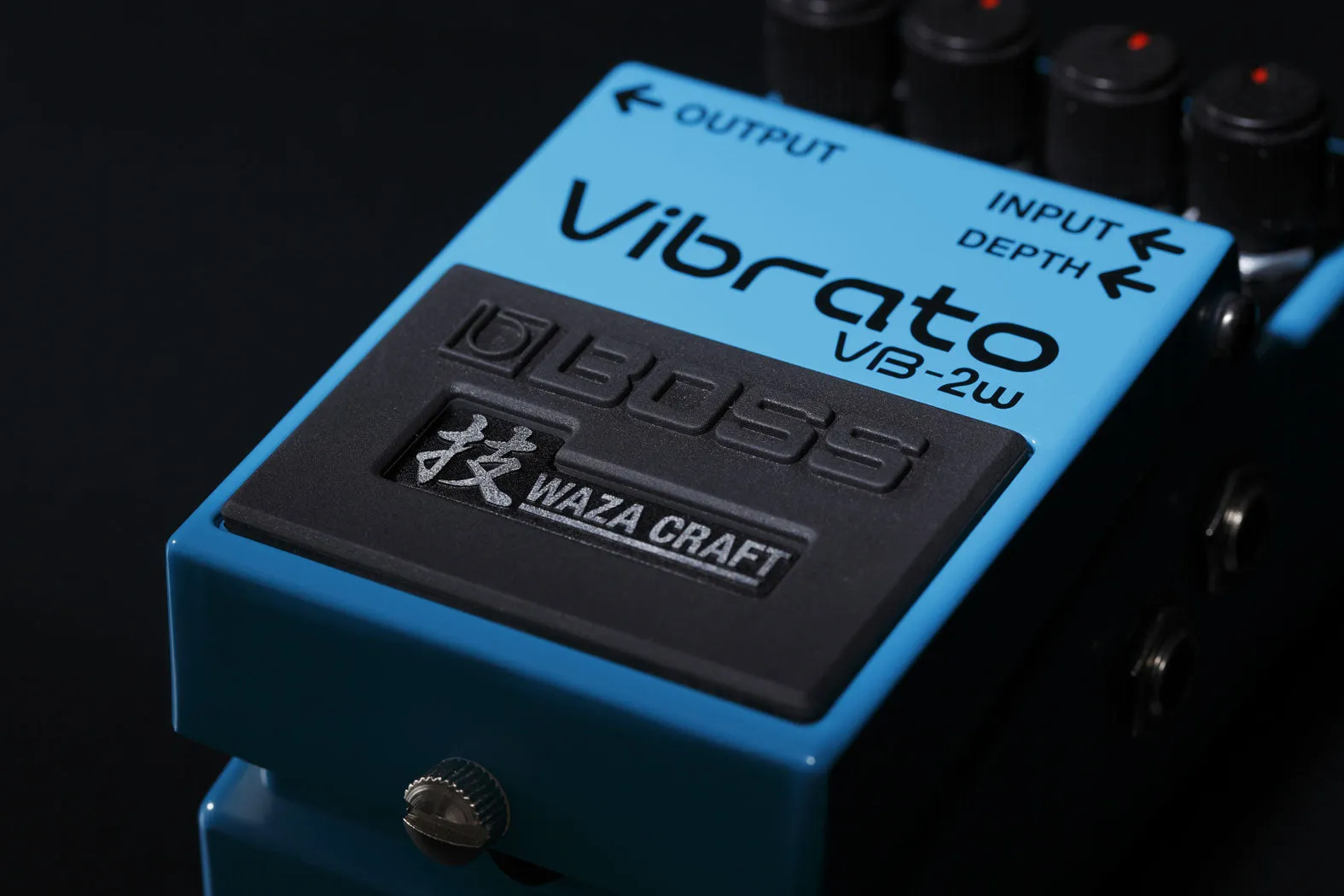

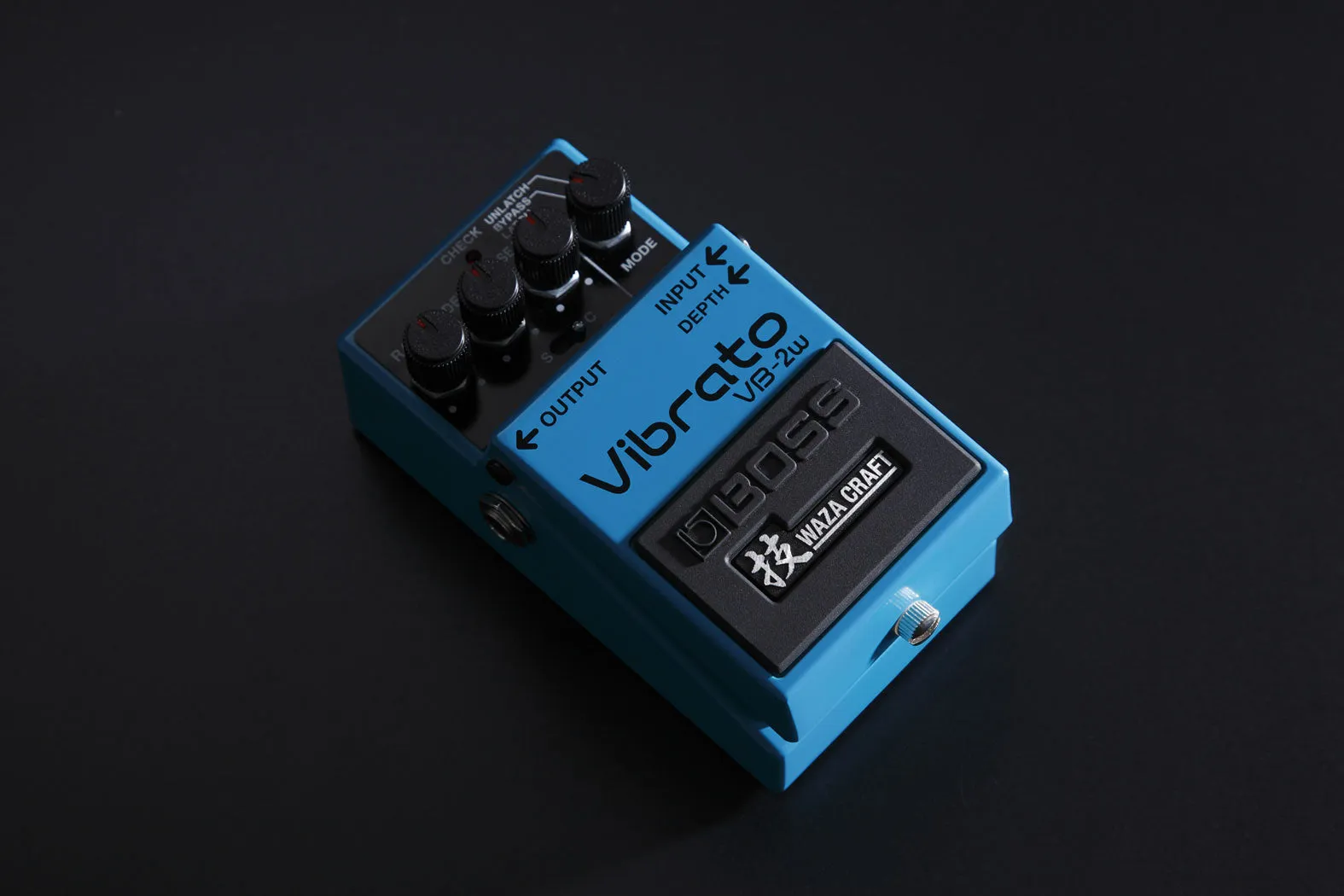

Ahead of its time when it debuted in 1982, the VB-2 Vibrato has been rediscovered by modern players looking to create unique guitar textures with stompbox effects. Thanks to its expressive, one-of-a-kind sound, this rare pedal has gone on to become one of the most valuable BOSS effects in the vintage market. Now, the progressive spirit of the VB-2 has been reborn as the Waza Craft VB-2W. Using all-analog circuitry, the VB-2W authentically reproduces the true pitch-shifted vibrato of the original pedal, and also adds an innovative new vibrato mode and real-time control function for enhanced expression.
- Waza Craft innovation for a premium analog tone experience
- Custom mode features a totally new vibrato sound with unique filter wave
- Standard mode provides a true reproduction of the vintage VB-2 Vibrato sound
- All-analog circuit with BBD (bucket brigade) vibrato line

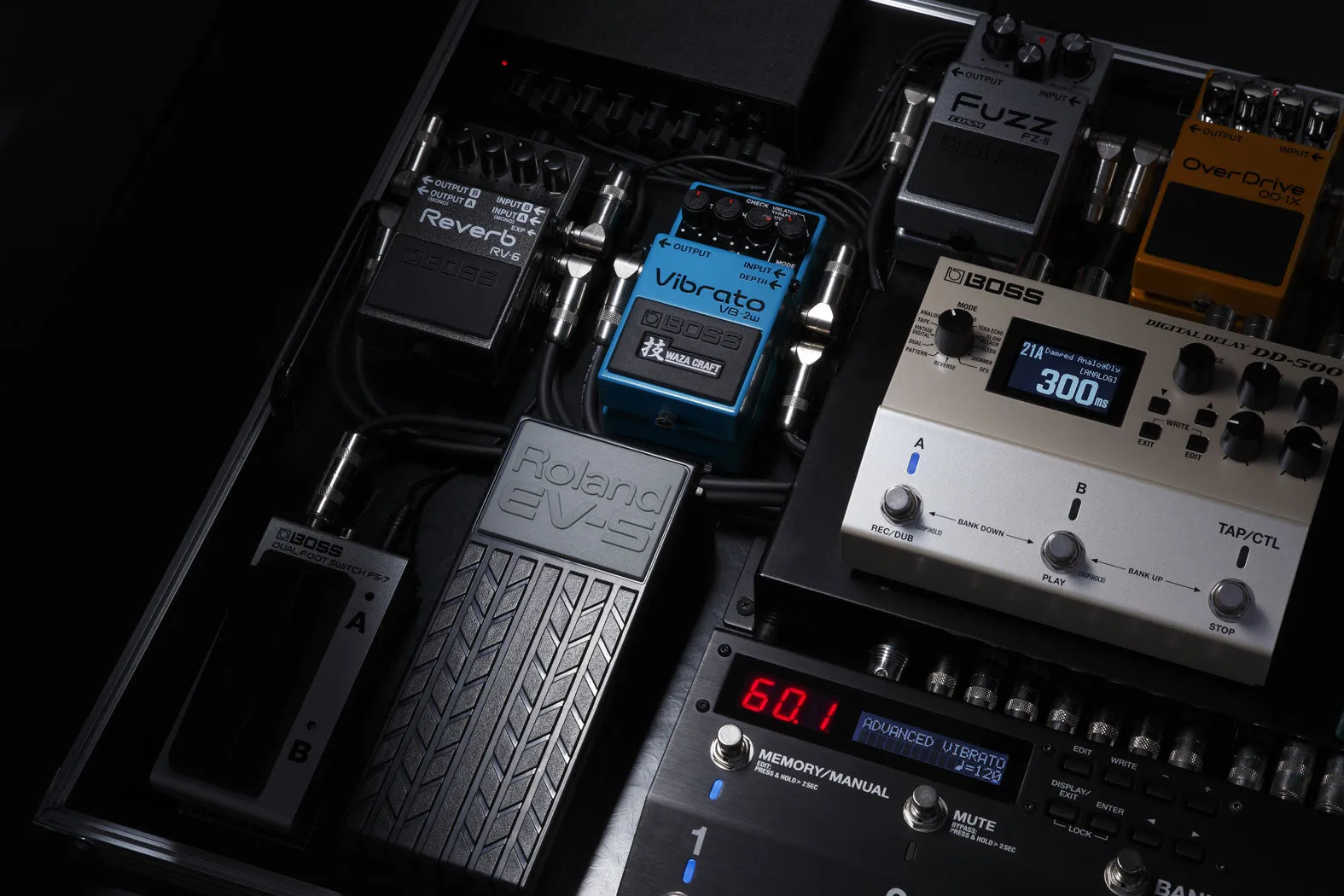

- Control the effect depth in real time with an optional expression pedal
- Rise Time knob to control the initial onset of the vibrato effect
- Unlatch mode activates the effect only while pressing the pedal, ideal for adding vibrato to specific notes and chords
- Bypass mode takes the BBD out of the signal path to eliminate latency when the effect is off
- Made in Japan
- BOSS five-year warranty
Waza Craft: The Art of Superior Tone
Since the beginning, the engineers at BOSS have been committed to achieving the finest guitar tones using any technology necessary, from old-school analog circuits to high-tech DSP. Continuing this enthusiastic spirit, we are pleased to introduce the Waza Craft series. In Japan, “Waza” is the term for art and technique, and these special edition pedals proudly carry the Waza symbol to represent the pinnacle of BOSS design and craftsmanship. Being made in Japan, the Waza Craft series brings you exceptional tone and touch response through carefully selected analog components, refined circuitry, and meticulous attention to detail.
- Specifications
- Modes
- 3 modes
LATCH
UNLATCH
BYPASS - Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- Pedal switch
Standard/Custom switch
RATE knob
DEPTH knob
RISE TIME knob
MODE knob - Indicator
- CHECK indicator (Serves also as battery check indicator)
- Connectors
- INPUT jack
OUTPUT jack
DEPTH jack
DC IN jack - Power Supply
- Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
AC adaptor (sold separately) - Current Draw
- 35 mA
- Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
- Alkaline: Approx. 22 hours
Carbon: Approx. 4 hours - Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
Alkaline battery (9V, 6LR61) - Options (sold separately)
- AC adaptor: PSA series
Expression Pedal: FV-500H, FV-500L, Roland EV-5 - Size and Weight
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight (including battery)
- 450 g
1 lb - * 0 dBu = 0.775 Vrms
